Cast Nylon - Polymer with Strength of Steel, Weight of Water, Look of Pearl and Life of Rock |
|
| Cast Nylon offer extremely good wear resistance, coupled with high tensile strength and modulus of elasticity. Cast Nylon also has high impact resistance, a high heat distortion temperature, and good resistant to wear, abrasion, and vibration. In addition, Cast Nylon can sustained contact with a wide variety of chemicals, alkali, dilutes acids or oxidizing agents. Another Important factors, both economically and mechanically, is the relatively lighter weight of Cast Nylon (approximately 1/8 the weight of bronze, 1/7 the weight of the cast iron, and 1/2 the weight of aluminum), which reduces both the inertial and static loads and eases the handling of large components during maintenance or replacement procedures. |
 |
 |
Availability: |

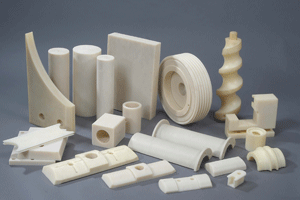

| CAST NYLON materials are available in the forms of Stock-shapes like Round, Rectangular, Square Bars, Tubes, Blocks, Sheets and in Finished Molded & Machined Components as per Cliental specifications. |
| |
|
|
|
| Applications: |
 |
Slipper Pads |
|
Guides |
|
Sprocket |
|
Wheels |
|
Pulley |
|
Cones & Nozzles |
|
Spacers |
|
Wear Plates |
|
|
| SILIENT FEATURES : |
|
Excellent Wear Resistant |
|
High Molecular Weight |
|
Non Corrosive |
|
Improved Self Lubrication |
|
Excellent Machinability |
|
Very Low Co-efficient of Friction |
|
High Heat Distortion Temperature |
|
|
| PHYSICAL PROPERTIES : |
| PROPERTIES |
METHOD |
UNIT |
VALUE |
| Tensile Strength |
ASTM D 638 |
Kgf/cm2
|
850 |
| Flexural Strength |
ASTM D 790 |
% |
950-1040 |
| Modulus of Elasticity |
ASTM D 638 |
Kgf/cm2
|
32000 |
| Compressive Strength |
ASTM D 695 |
Kgf/cm2
|
1200 |
| Impact Strength (notch) |
ASTM D 256 |
Kg/cm2
|
4.5-5.5 |
| Specific Gravity |
ASTM D 792 |
gm/cc |
1.15 |
| Hardness |
ASTM D 2240 |
Shore D |
78 - 86 |
| Service Temperature (Max) |
|
oC |
90 - 130 |
| Co-efficient of Friction |
|
|
0.15 - 0.35 |
|
